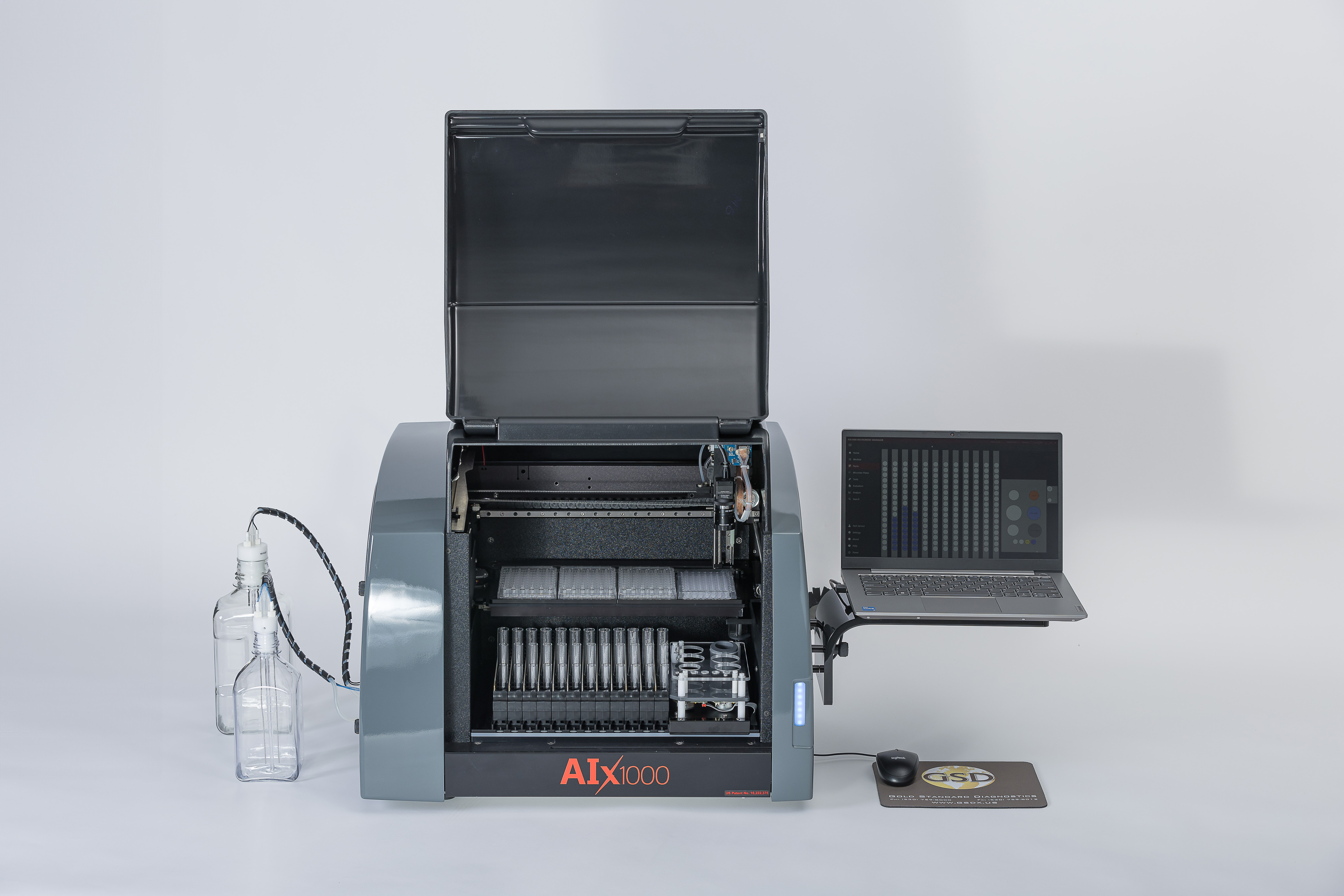

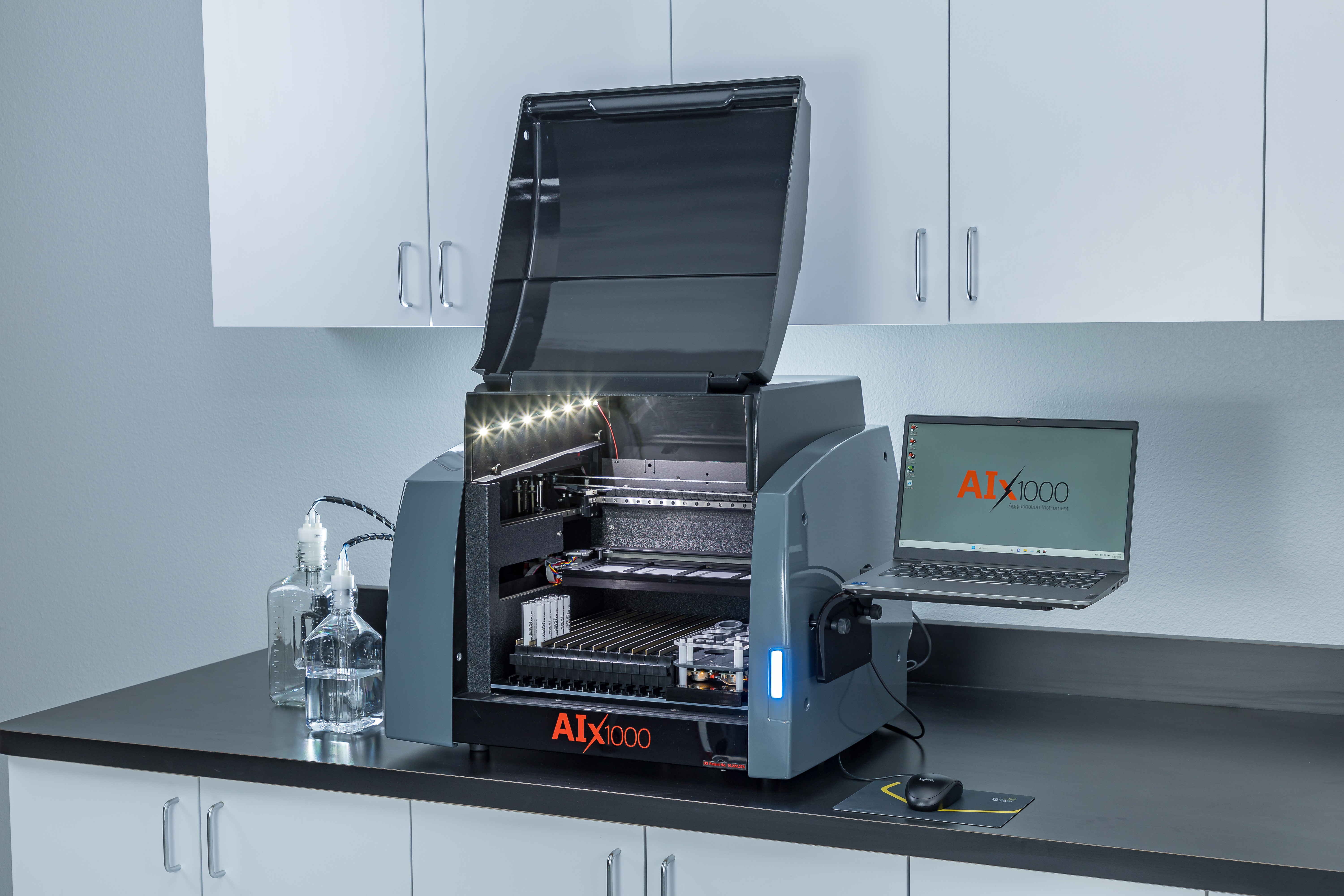

AIX1000® Analyzer

FULLY AUTOMATED RPR SYPHILIS TESTING

The AIX1000® is the world’s first fully automated system for nontreponemal RPR Syphilis testing. Simply load your reagents and up to 192 samples, then walk away. The AIX1000® automates the processing, analysis, reporting and archival of results for both RPR screens and titers.

NEW RELEASE: The AIX1000® 2.1 for RPR Syphilis testing is the only automated system FDA cleared for EXTRA HIGH TITERS -- with screens and titers up to 1:2048.
‍

US PATENT NO. 10,222,375

Process and Machine for Automated Agglutination Assays with Image Automated Evaluation

EXTRA HIGH TITERS

Gold Standard Diagnostics is proud to announce the launch of AIX1000® 2.1 for RPR syphilis testing, NOW featuring EXTRA HIGH TITERS with screens and titers up to 1:2048—advancing detection and treatment monitoring for late-stage and Neurosyphilis cases.

This release also includes powerful workflow enhancements including bleach maintenance support, reflex runs, improved LIS communication, and faster backup and restore designed to enhance efficiency and improve data clarity.‍

FULLY AUTOMATED.

The RPR test procedure and results interpretation are fully automated. Reduce variation associated with manual testing & interpretation.

COST EFFECTIVE & EFFICIENT.

Reduce the amount of labor overhead dedicated to RPR testing, freeing personnel to increase productivity across laboratory operations.
Improve the quality & consistency of your results.

PERFORMS SCREENS & TITERS.

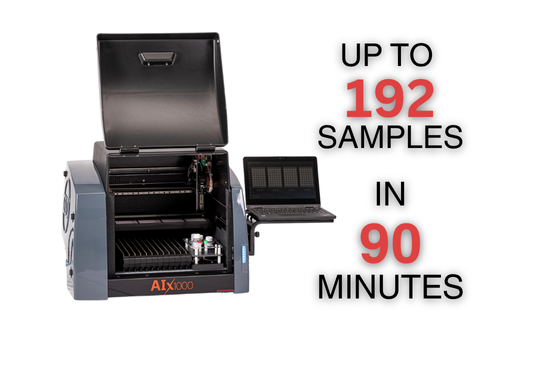

Run flexible batch sizes of up to 192 samples in 90 minutes. The AIX1000® performs RPR screens and/or titers using automated protocols.

EASY ACCESS TO TEST RESULTS.

Images of each RPR test result are stored digitally and are retrievable on demand for review anytime.

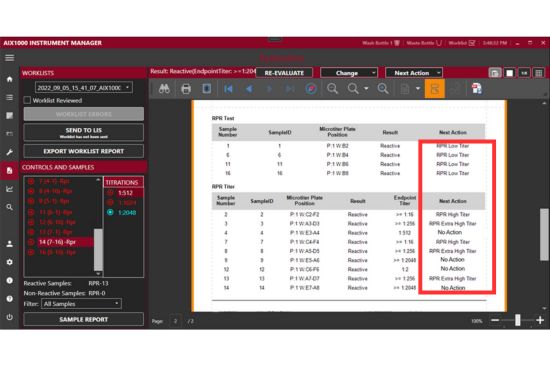

EXTRA HIGH TITER CAPABILITY

The only FDA cleared automated solution for extra high titer testing. Run screens and titers out to 1:2048.

Features

START THE RUN & WALK AWAY

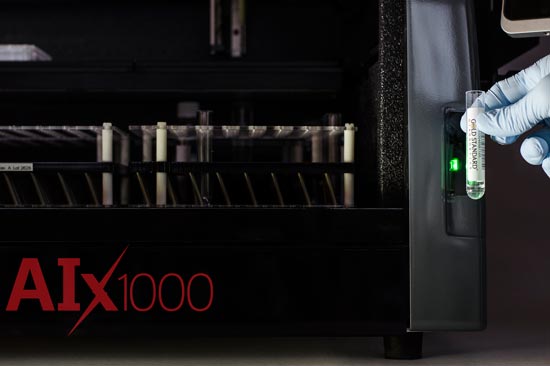

Load sample tubes with the slide-in racks using the built-in bar code reader for sample tube detection (presence and size). The AIX1000® provides full sample traceability from loading to result reporting and archiving.

SOFTWARE

Run qualitative screens & semi-quantitative titers (1:2-1:2048). The AIX1000® performs the RPR test procedure for screens and titers, and automatically interprets results using a proprietary pattern recognition algorithm.

DIGITAL RESULTS

An HD camera generates images of RPR test results that are stored digitally and are retrievable on demand.

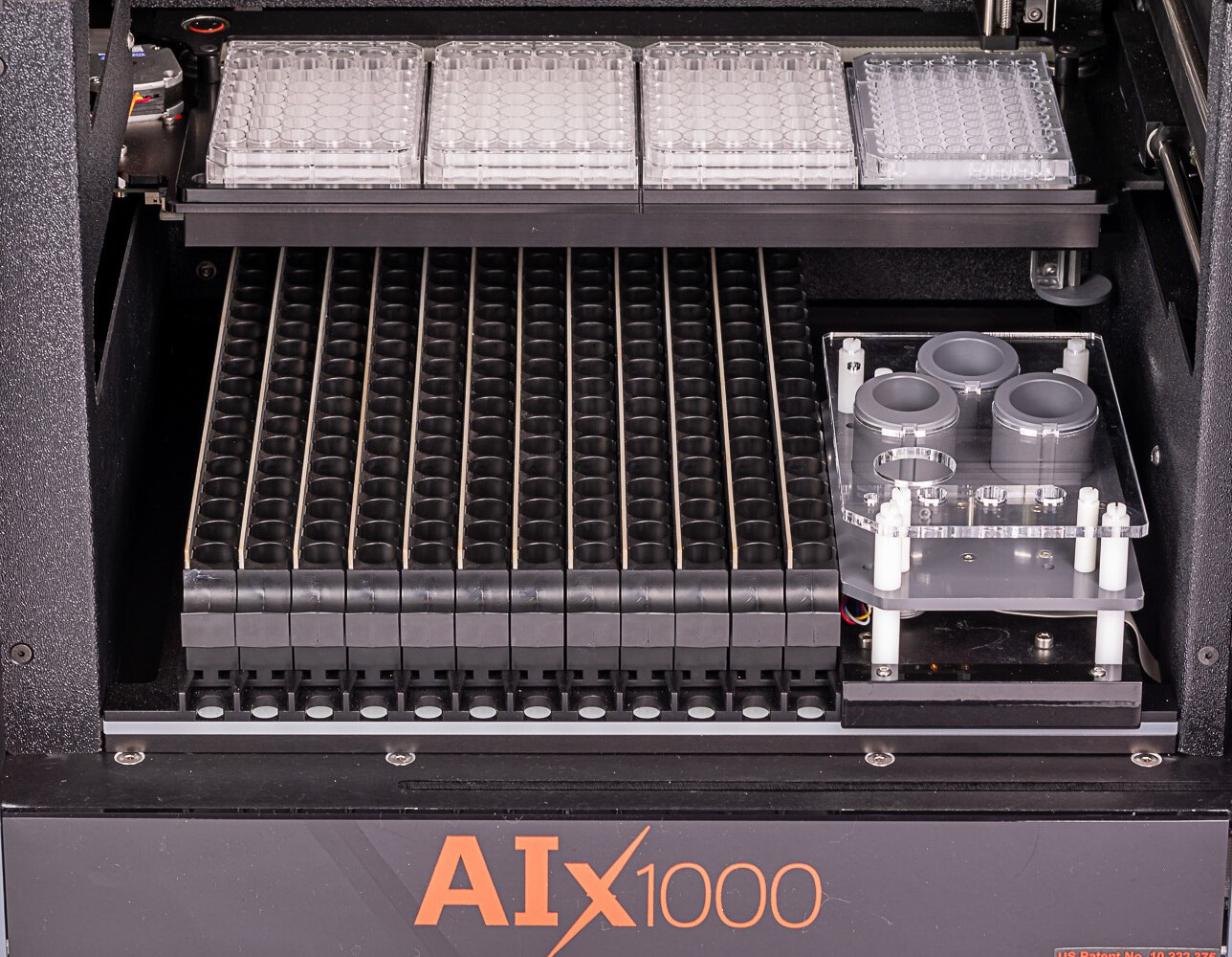

ON-BOARD FEATURES

The AIX1000® employs a single, dual needle probe to aliquot Gold Standard Diagnostics’ RPR reagents in up to 4, 48 well microtiter plates, and an orbital shaker to perform the automated RPR test procedure. A built-in magnetic stir plate maintains carbon reagent suspension during the run.

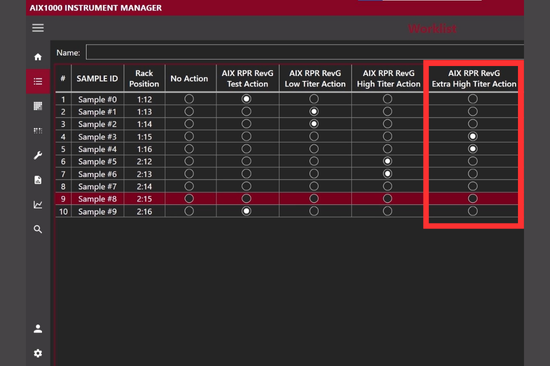

EXTRA HIGH TITER CAPABILITY

Run screens and titers out to 1:2048. Select different titer ranges for each sample on the same run.

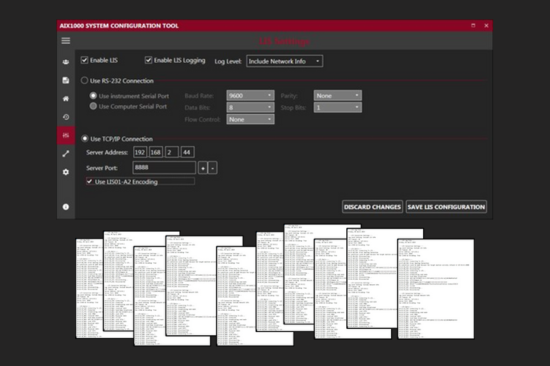

COMPATIBLE WITH LABORATORY INFORMATION SYSTEMS

Upload and report results directly to your laboratory database without the need for manual data entry. Integrate results archiving and reporting into your laboratory information system. Individual LIS activity logs are created and stored based on date.

SOFTWARE

Run qualitative screens & semi-quantitative titers (1:2-1:256). The AIX1000 performs the RPR test procedure for screens and titers, and automatically interprets results using a proprietary pattern recognition algorithm.

DIGITAL RESULTS

An HD camera generates images of RPR test results that are stored digitally and are retrievable on demand.

ON-BOARD FEATURES

The AIX1000 employs a single, dual needle probe to aliquot Gold Standard Diagnostics’ RPR reagents in up to 4, 48 well microtiter plates, and an orbital shaker to perform the automated RPR test procedure. A built-in magnetic stir plate maintains carbon reagent suspension during the run.

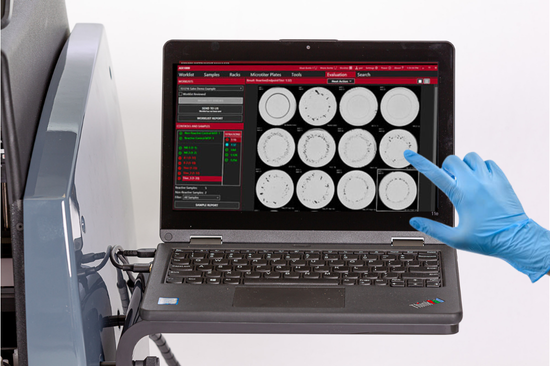

INTUITIVE, USER FRIENDLY TOUCH INTERFACE

Use the touch-screen interface to analyze, archive and retrieve results.

COMPATIBLE WITH LABORATORY INFORMATION SYSTEMS

Upload and report results directly to your laboratory database without the need for manual data entry. Integrate results archiving and reporting into your laboratory information system.

DIGITAL RESULTS

Proprietary Gold Standard Diagnostics reagents.

NON-REACTIVE

REACTIVE

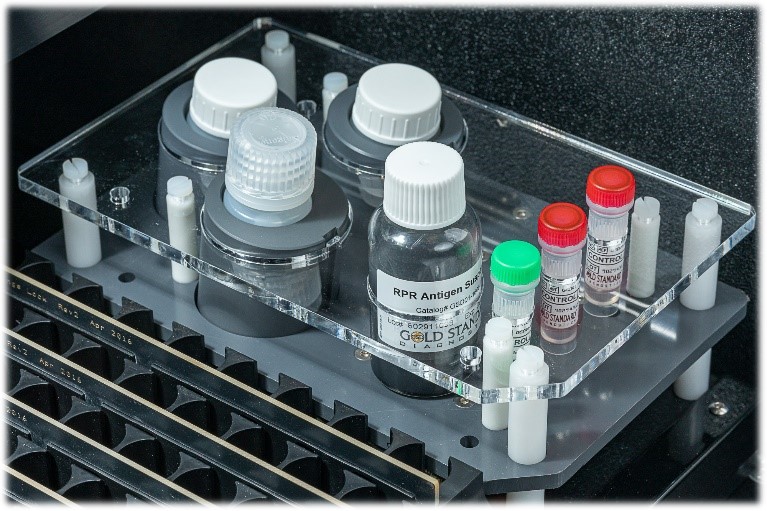

Gold Standard Diagnostics Rapid Plasma Reagin (RPR) Test System

  • 480 test kit
  • 10 x 48 well microtiter plates
  • 22mL Carbon Antigen
  • 350uL Reactive Control
  • 350uL Non-Reactive Control
UNIQUE OPTIONS
TECHNICAL SPECIFICATIONS
MORE TECHNICAL SPECIFICATIONS
SOFTWARE SPECIFICATIONS

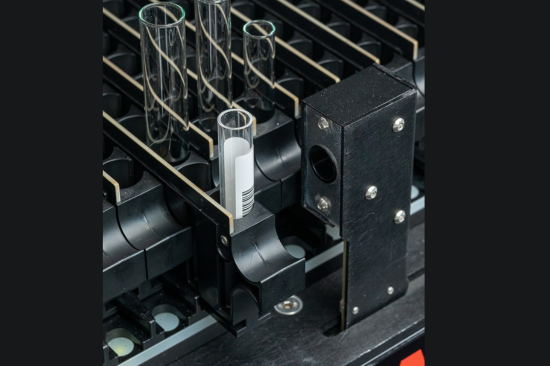

Slide-In Racks

Slide-in Racks with integrated barcode reader accepting 1D/2D barcodes

High Precision Micro-Syringe

Aspirate 1µl with less than 3% CV.

On-board Camera

Probe-mounted high-definition camera.

Liquid Handling

Probe Assembly: Single probe, dual needle system
Probe Tip: Fixed needle, washable stainless steel

Orbital MTP Shaker

Amplitude: 10 mm, Speed: Up to 400 RPM, 4 MTP

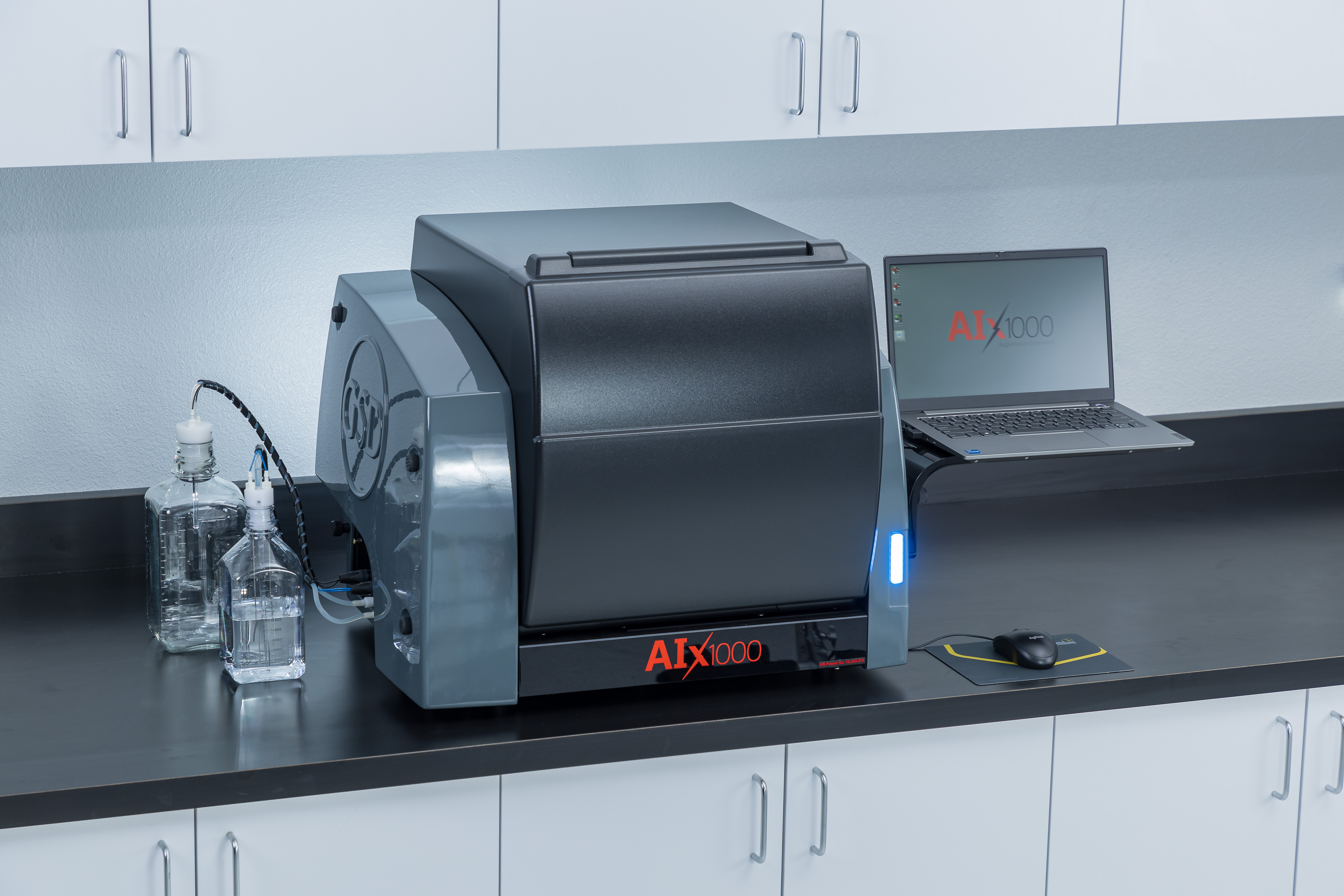

Small Footprint

~2 feet x 2 feet

Sample Capacity

12 racks of 16 samples. 192 patient sample positions.

Reagent Positions

1 rack of 4 reagent positions and 2 control positions

Test Tube Size(s)

Accepts 12 to 16 mm diameter, up to 100 mm tall tubes

MTP Positions

4 positions. 4 reaction plates for screens, 3 reaction plates, a 1 predilution plate for titers

Well-Tracking

Independent well tracking and timing.

Waste & Wash Bottles

2 liter external waste bottle. 1 liter external wash bottle.

Probe/Needle

Single probe, dual needle.

Dispense Volume

Up to 300 µl.

Aspiration Volume

1 µl – 300 µl.

Orbital MTP Shaker

Amplitude: 10 mm. Speed 100-400 RPM.

LED Backlight

Power Supply

100-265V, 50-60Hz, 120W Max.

Dimensions

W: 64 cm (25.2 in), D: 57 cm (22.4 in), H: 45 cm (17.7 in), H (open): 91.5cm (36 in).

Weight

28 kg (61.7 lbs).

Language

Multi-language support.

Image Analysis

Proprietary digital agglutination recognition algorithm.

Results Archiving

Digitally store images for retrieval anytime.

LIS Compatible

RS232, USB, TCP/IP.

User Interface

MS Windows 10 and 11 Graphical User Interface
